CT4000
HIGH RELIABILITY AND HIGH PERFORMANCE DESIGN FOR HIGH WORKLOAD

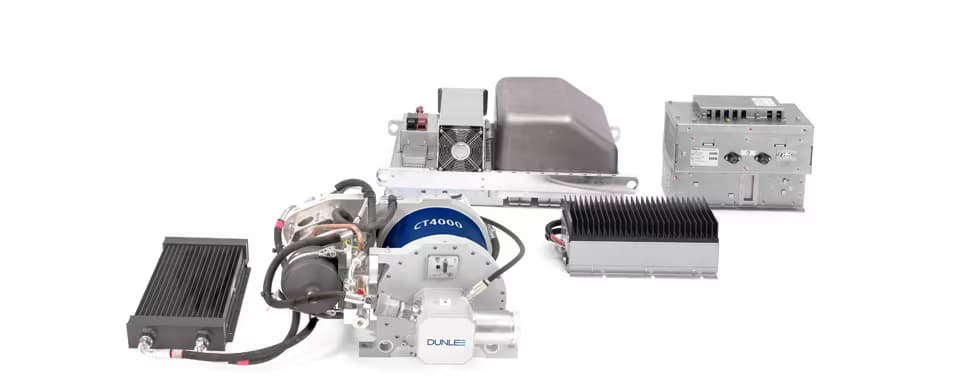

The Xceed Bundle with CT4000 is perfectly suited for high clinical through-put needs where high performance is required. It features CoolGlide™ liquid metal bearing (LMB) technology, which dissipates heat so effectively it drastically reduces the need to wait for the tube cooling between exams and allows many demanding scans to be run back-to-back. The frictionless operation of LMB decreases wear on the tube, resulting in a longer life than traditional ball bearing tubes. The Xceed bundle consists of an X-ray tube with Cool-Glide™ LMB, generator, cooling unit and cables. Additionally, it can be combined with a Dunlee detector.
KEY BENEFITS
High Throughput
- Excellent cooling capacity with high reliability for high patient throughput
- Less waiting time due to overheating
Faster Workflow
- Continuous rotation of the anode, saves preparation time, no start and stop like with ball bearings
- Excellent cooling capacity with high reliability for high patient throughput
Higher Reliability
- Average lifetime of CoolGlide LMB tubes exceeds traditional Ball Bearing tubes by far
Xceed bundle with CT4000 for a fast integration into your development process to speed up the time to market.
This product bundle provides solutions along the way, from development through after sales service to support your business process.
The components are supplied readily calibrated and configured to help reduce your required R&D resources and costs. All cables are preassembled and color coded for an easy and fast system integration.
The use of simplified, higher-level commands means that your team does not require in-depth knowledge of tubes and generators. On top of that we offer an all-round support during development and throughout the whole product lifecycle. You are set for efficient production and clinical workflow.
Maximum Power [kW](IEC Rated (4/600 sec repeated) | 80 |
G-load [g] | 21.5 |
Max. Scanner Speed(@570mm FS to ISO distance) | 172 rpm |
Nominal Tube Voltage [kV] | 140 |
Focal Spots [mm] | Large: 1.0 x 1.0 |
Dynamic Focal Spot | X-DFS: Yes |
Polarity | Bipolar |
Documentation | Download leaflet |
