The Xpert and Xceed bundles are state-of-the-art product package solutions that combine a generator, tube, cooling unit and cables. Additionally, the Xpert bundle can be combined with a power distribution unit. The bundles can therefore be used to build multiple CT scanners with different characteristics (e.g. power levels, gantry speeds, etc.).

The bundles come with TubeManager, a new plug-and-run function that saves time and money during both implementation and tube replacement. TubeManager self-installs and synchronizes with other bundled components. It also secures your service business with a function that ensures that tubes are only replaced by equivalent, high-quality Dunlee products.

All bundled components have been developed together and are in alignment with each other. This facilitates the packages’ quick, easy and cost-efficient integration. Dunlee’s product leadership provides higher tube reliability, which translates into excellent productivity, fewer service calls, and less downtime.

We currently offer six different bundles: Xpert bundle with either CT8000, CT6500 or CT6000 and Xceed bundle with CT4000, CT4000 essential or CT3000.

Xceed: Product Bundle for Performance CTs

Performance CTs are the workhorses of every imaging department and cover a wide range of applications. Usually these systems have 32-128 slices and offer a coverage of 4 cms and are partly ready for basic cardiac applications.

With the Xceed bundle Dunlee is providing a CT solution which offers 3 different tube options to cover the full range from low to high performance. All tube types have identical form, mounting and interfaces and are powered by Dunlee‘s CG500 generator.

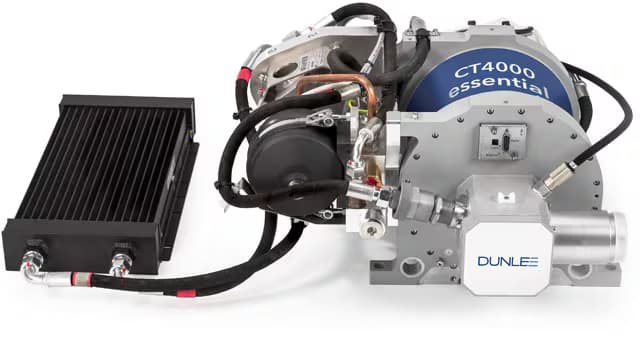

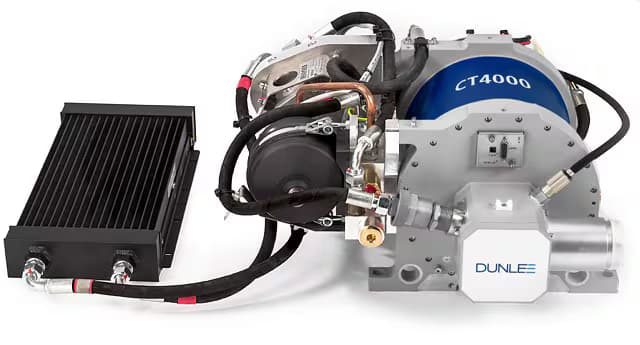

	XCEED BUNDLE WITH CT3000	XCEED BUNDLE WITH CT4000 essential	XCEED BUNDLE WITH CT4000
Dunlee CoolGlide LMB	✔	✔	✔
Throughput
Power	60 kW	70 kW	80 kW
Ready for basic cardiac applications		✔	✔
Coverage	4 cm	4 cm	4 cm

Xpert: Product Bundle for Premium, Super Premium and Photon-Counting CTs

Premium and super-premium CT systems are high-end solutions that offer features for advanced imaging. These systems operate at high gantry speeds (> 200 RPM) and provide wide coverage (8-16 cm) for cardiac imaging. CT systems in this segment typically offer high power (100-120 kW) and use LMB tubes for high throughput. This segment includes CTs with high-definition detectors and photon-counting capabilities. All tube types have identical mounting and interfaces and are powered by Dunlee‘s CG700 generator.

Almost arc-free: Field data shows improved CT workflow with Dunlee‘s Xpert bundles.

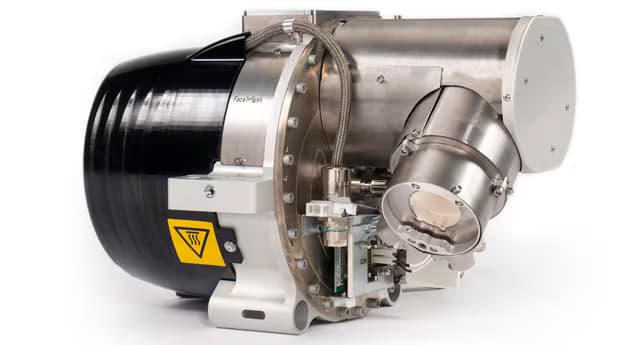

	XPERT BUNDLE WITH CT6000	XPERT BUNDLE WITH CT6500	XPERT BUNDLE WITH CT8000
Dunlee CoolGlide LMB	✔	✔	✔
Advanced Cardiac Imaging	✔	✔	✔
Coverage	8 cm	8 cm	16 cm
Gantry Speed	245 rpm (optional)	245 rpm	245 rpm (optional)
Arc Rate (# of scan interrupting arcs in 3 years)	<1	<1	<1
Throughput
Power	100 kW	120 kW	100 kW
Photon Counting & High resolution detection: Extra small Focal spots	✔	✔	✔
