Today’s advanced clinical applications require outstanding spatial resolution for both image quality and workflow. As detector resolution technology continues to push its limits, attention has shifted to increasing spatial resolution via the X-ray source. Dunlee’s small, stable focal spots are engineered to balance optimization of image quality, throughput and heat management to help you get the most out of your ultra-high-resolution CT (UHR-CT) and photon-counting CT (PCCT) systems.
Our Xpert bundles now include three additional extra-small focal spot options, allowing system designers and OEMs to cover the entire spectrum of CT applications with greater flexibility. From our large 1.1 x 1.2 mm focal spot delivering 120 kW for high-throughput imaging, to the smallest 0.4 x 0.5 mm focal spot for ultra-high-resolution imaging, Dunlee’s tubes are designed to support evolving clinical and technical demands.

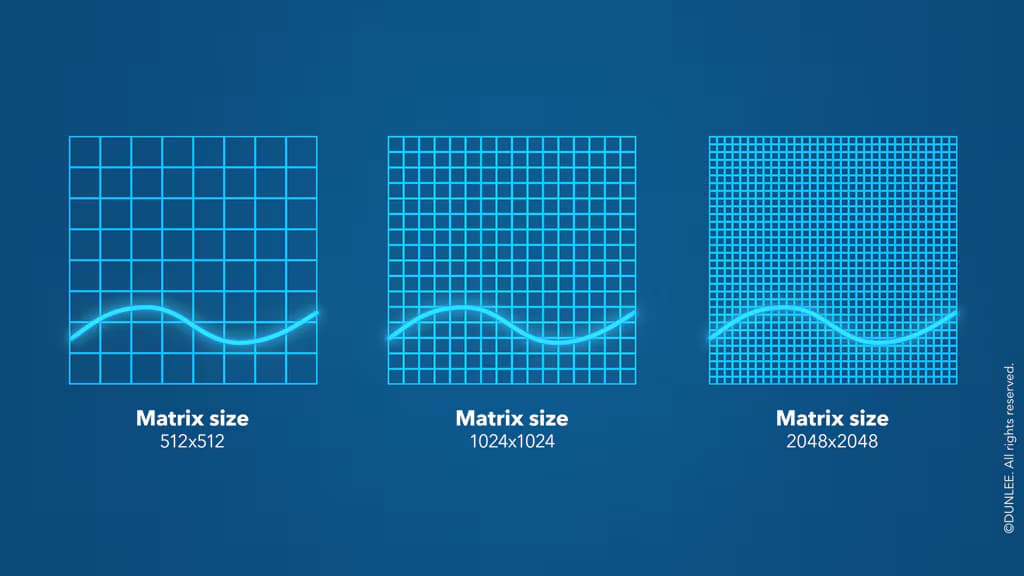

Smaller matrix sizes of new high-resolution CT systems demand smaller pixels
THE RISE OF HIGH-RESOLUTION CT IMAGING
CT imaging is undergoing rapid evolution, with spatial resolution and image detail becoming more critical than ever. Two leading approaches are shaping this trend:
Ultra-high-resolution CT (UHR-CT)
Utilizes conventional Energy Integrating Detectors (EID) with reduced pixel sizes for greater resolution.
Photon-counting CT (PCCT)
Incorporates photon-counting detectors that offer both higher resolution through smaller pixel sizes and spectral imaging capabilities.
These technological advances require equally advanced X-ray sources. Smaller detector pixels demand focal spots that are not only smaller, but also thermally and mechanically stable - areas where Dunlee’s technology excels.
CLINICAL APPLICATIONS FOR HIGH-RESOLUTION IMAGING
High-resolution CT applications rely on precise visualization of fine structures, and the demand for improved diagnostic clarity is growing.
Cardiology: For visualization of coronary arteries and soft plaques
Pulmonology: For detailed lung imaging and detecting interstitial changes
Oncology: For identification and characterization of small lesions and tumors
Orthopedics: For visualization of complex bone pathologies, detection of microfractures, and assessment of implant placement
Neurology: For detection of cerebral microbleeds, small infarcts, and evaluation of fine neural structures
DUNLEE’S ROLE IN ENABLING UHR AND PCCT IMAGING
To fully leverage the capabilities of high-resolution detectors, the performance of the X-ray tube is critical. Our expert engineers have developed small, highly stable focal spots that maintain sufficient power and thermal performance for daily clinical operations.
How focal spot size affects CT resolution:
Exploring the relationship between focal spot size & image resolution (measured in LP/mm)
The key physical drivers of spatial resolution include:
- Detector pixel size: Smaller pixels capture finer detail.

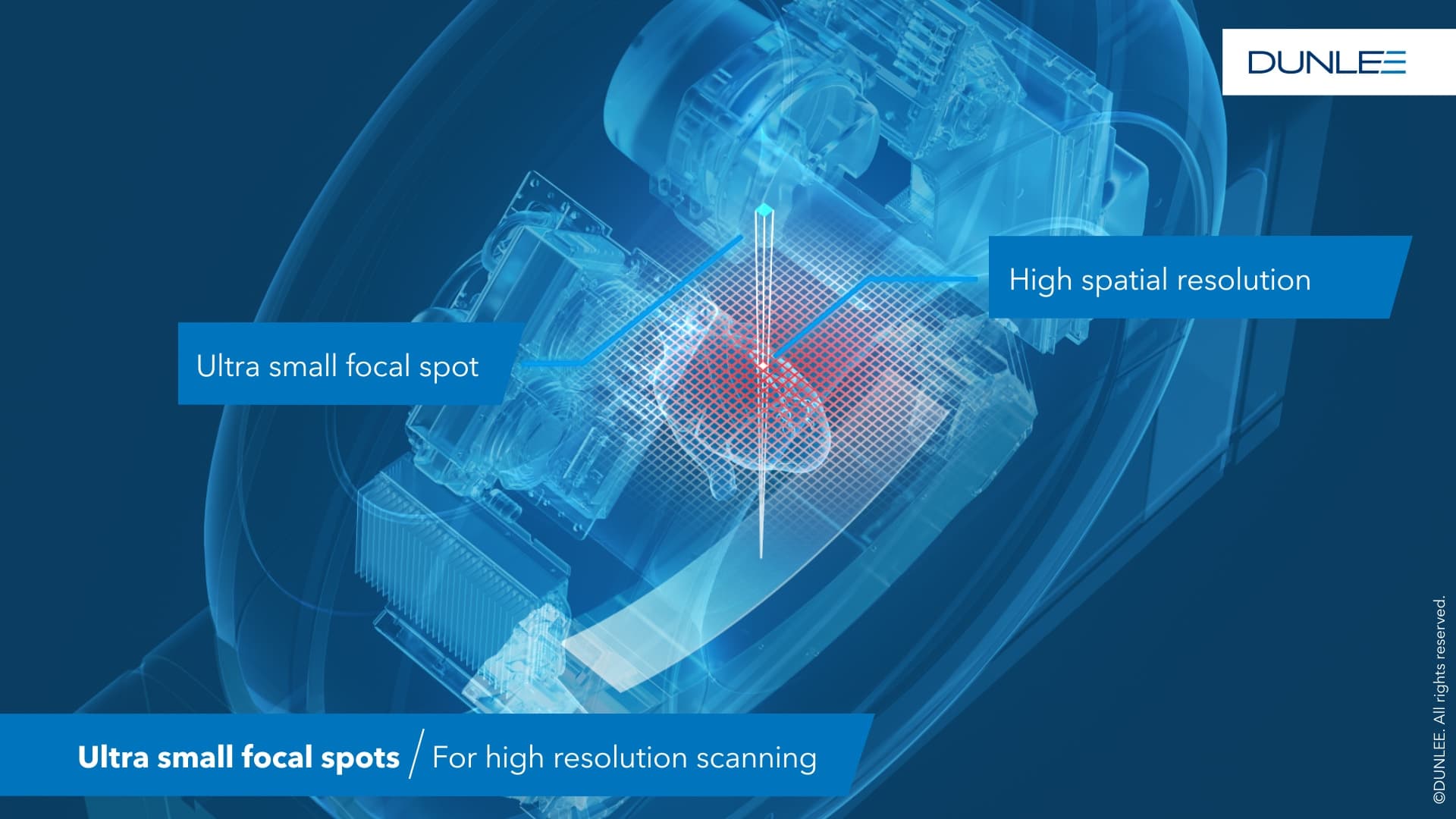

- Tube focal spot size: Smaller focal spots sharpen projections through reduction of blurring.
However, smaller focal spots increase the power density on the anode, making heat management essential to avoid system downtime. At the same time, high gantry rotation speeds for complex applications - such as heart scans - demand mechanical stability of focal spots, regardless of size.
Three additional focal spot sizes for unlocking the full potential of high-resolution detectors

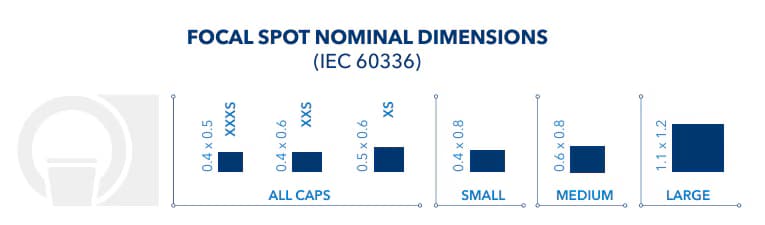

With the Xpert bundle, Dunlee offers different focal spot options to cover the entire range of CT applications:
ANTI-SCATTER GRID TECHNOLOGY SUPPORTING IMAGE PRECISION
Advanced CT systems require equally advanced anti-scatter solutions. Dunlee offers a new generation of Anti-Scatter Grids that are optimized for high-resolution imaging:
- Pure tungsten composition for superior scatter absorption

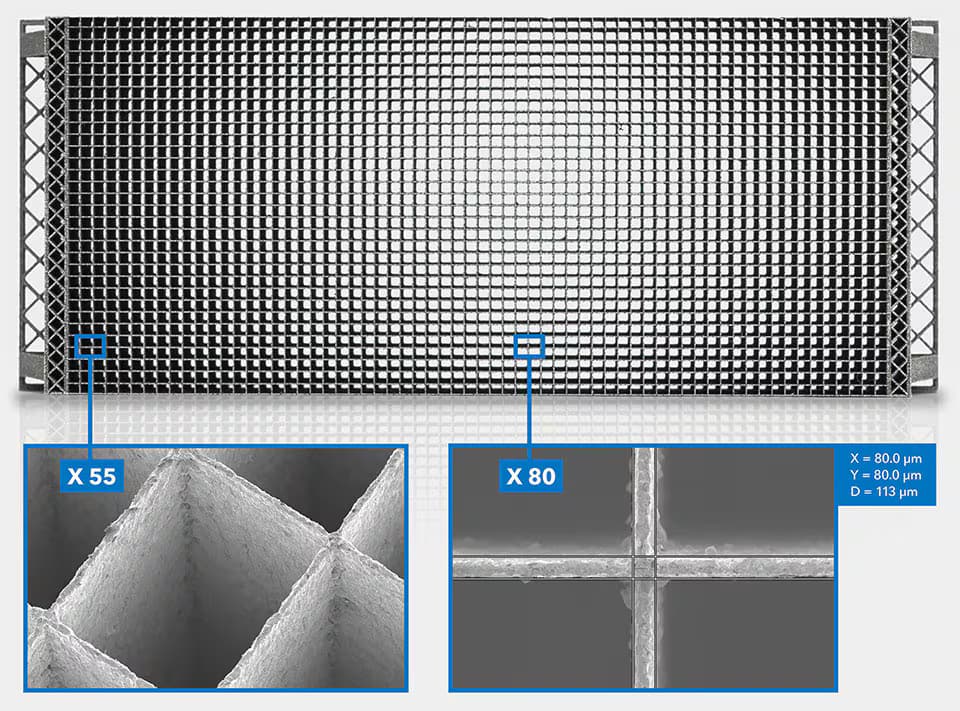

- As small as 70 µm feature size with 15 µm precision
- 3D-printed designs to support emerging UHR and PCCT detector layouts
These grids maintain image sharpness and contrast, particularly when used in systems requiring high precision. To learn more, please visit here.
We also support you as you design systems for the next generation of clinical applications.
DUNLEE’S SOLUTION: THE XPERT BUNDLE

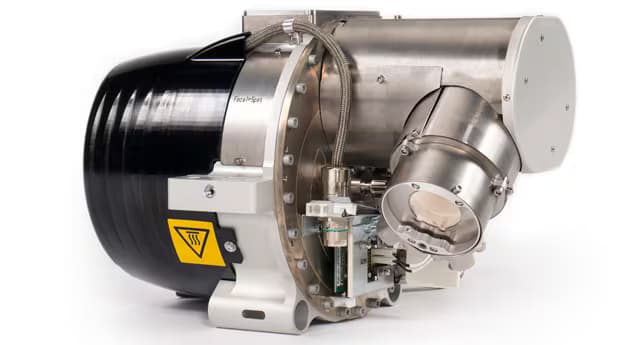

XPERT BUNDLE WITH CT6500
Its cutting-edge technology takes your CT system to the next level.

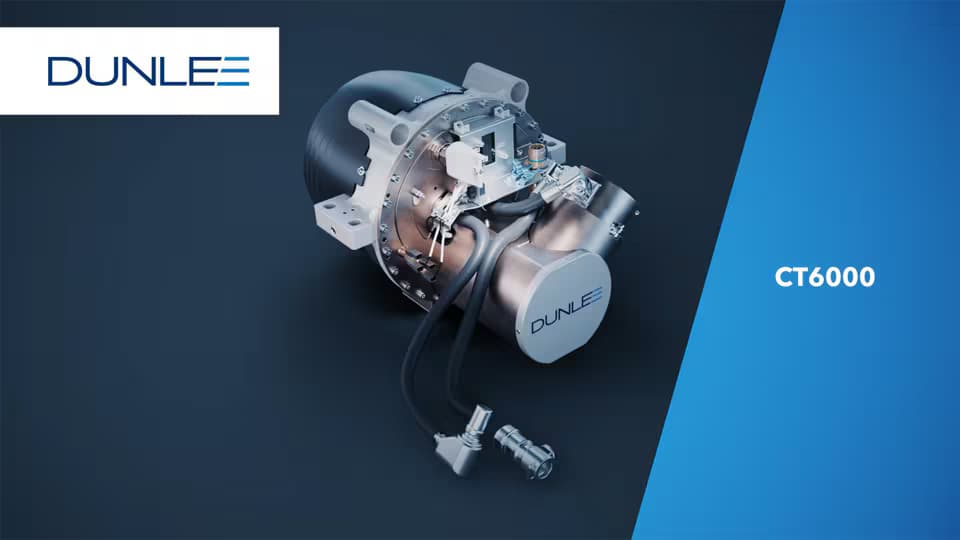

Learn moreDUNLEE’s Xpert Bundles with CT6000, CT6500 and CT8000 provide extra-small focal spots to address high resolution imaging:
| CT6000 | CT6500 | CT8000 | |
|---|---|---|---|
| Dunlee CoolGlide LMB | ✔ | ✔ | ✔ |
| Focal Spot Options [in mm] | Large: 1.1 x 1.2 Medium: 0.6 x 0.7 Small: 0.4 x 0.7 XS: 0.5 x 0.6 XXS: 0.4 x 0.6 XXXS: 0.4 x 0.5 | Large: 1.1 x 1.2 Medium: 0.6 x 0.7 Small: 0.4 x 0.7 XS: 0.5 x 0.6 XXS: 0.4 x 0.6 XXXS: 0.4 x 0.5 | Large: 1.1 x 1.2 Medium: 0.6 x 0.8 Small: 0.4 x 0.8 XS: 0.5 x 0.6 XXS: 0.4 x 0.6 XXXS: 0.4 x 0.5 |
Do you want to learn more about how Dunlee supports system design for high-resolution CT?
From choosing the right focal spot configuration to integration into your imaging system, our experts are here to support you! Reach out to us at marketing@dunlee.com and let’s shape the future of high-resolution CT together.
