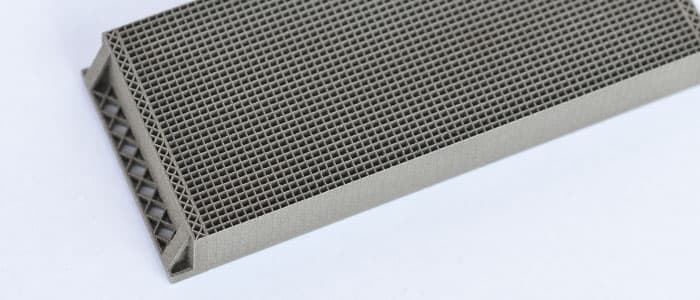

TUNGSTEN ANTI-SCATTER GRIDS
TUNGSTEN ANTI-SCATTER GRIDS
X-RAY GRIDS FOR PREMIUM RADIOGRAPHY

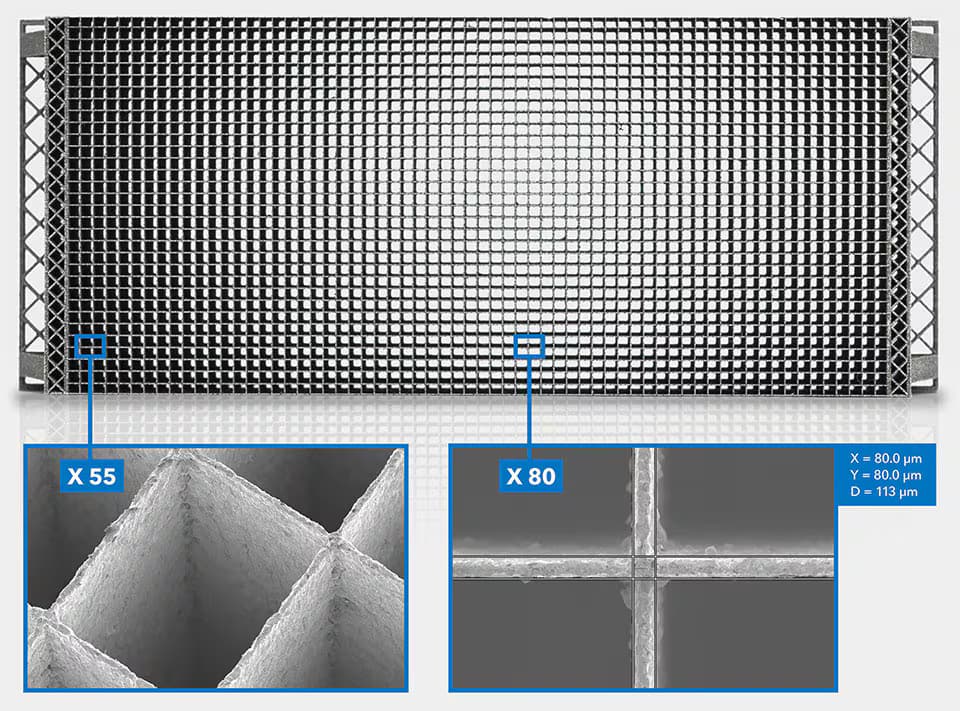

The advantages of 2D tungsten Anti-Scatter grids as compared with conventional 2D Molybdenum or 1D grids are considerable. Here, the high density of tungsten allows more X-ray scatter to be absorbed. Moreover, with the new design possibilities afforded by 3D printing, X-rays can now be directed into the photodiode more accurately.
YOUR BENEFITS
- Maximum design freedom
- Less X-ray scatter for premium image quality
- Improved and simplified assembly processes that save costs
- Access to top-level detection and grid design expertise for grid designs perfectly suited to your needs
PRODUCT FEATURES
- Maximum product size 230x230x200mm, possibility to go beyond this size through innovative solutions
- Positional accuracy of 25 μm
- Small feature size of 100 μm
- High aspect ratios (1:300) possible
- Made of 100% pure tungsten
- Produced with innovative metal 3D printing process
- Patented post-processing capabilities
Contact us to find out more about our support
